SBM 4.0 voor dewatering afgeleverd aan Van den Heuvel Group
Van den Heuvel is a forward-thinking family business that has been involved in infrastructure projects for water, energy and telecommunications since 1956. With over 800 employees, they work across the Netherlands on a daily basis.

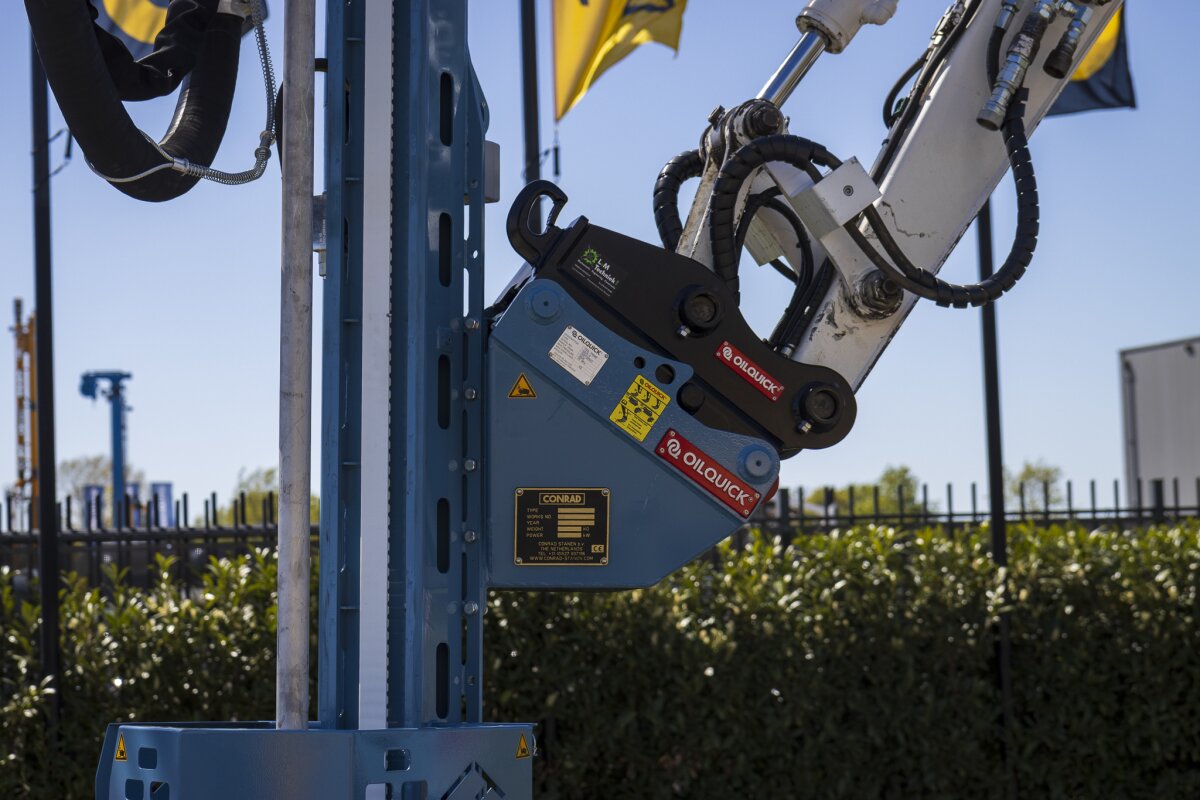

Mounted on the crane using the OilQuick quick-change system

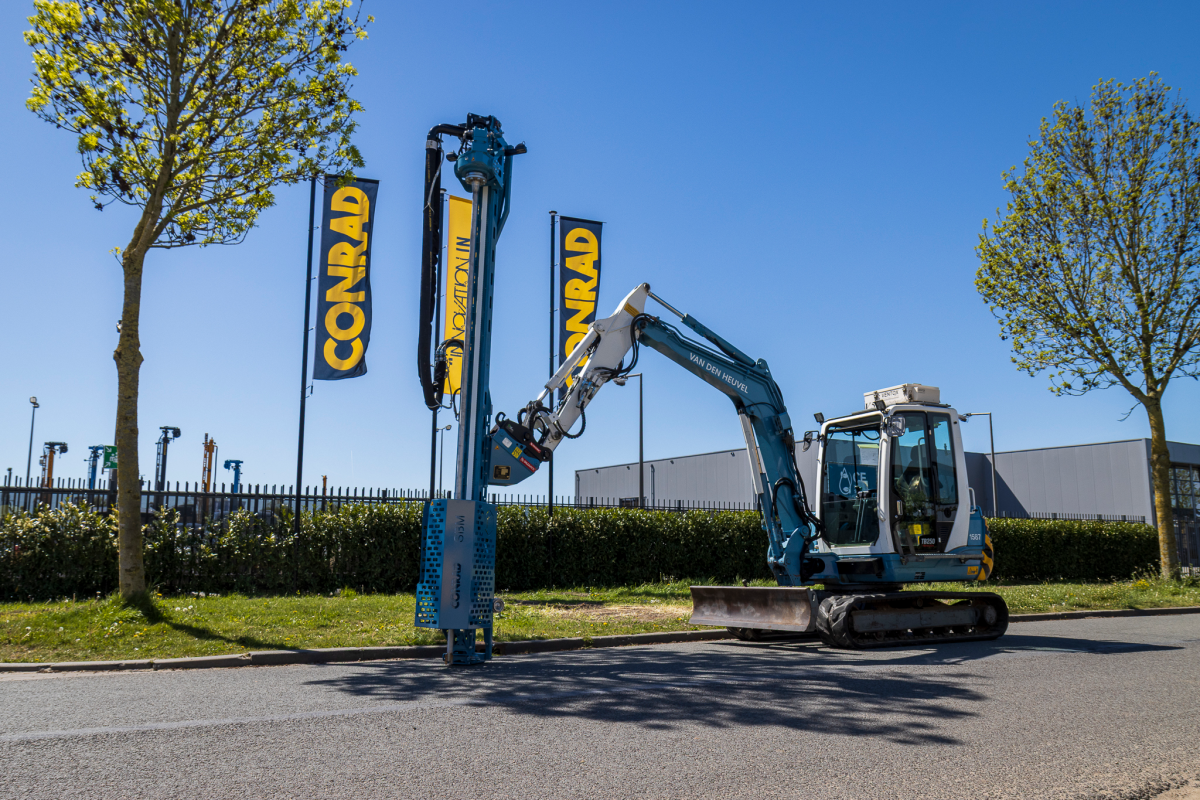

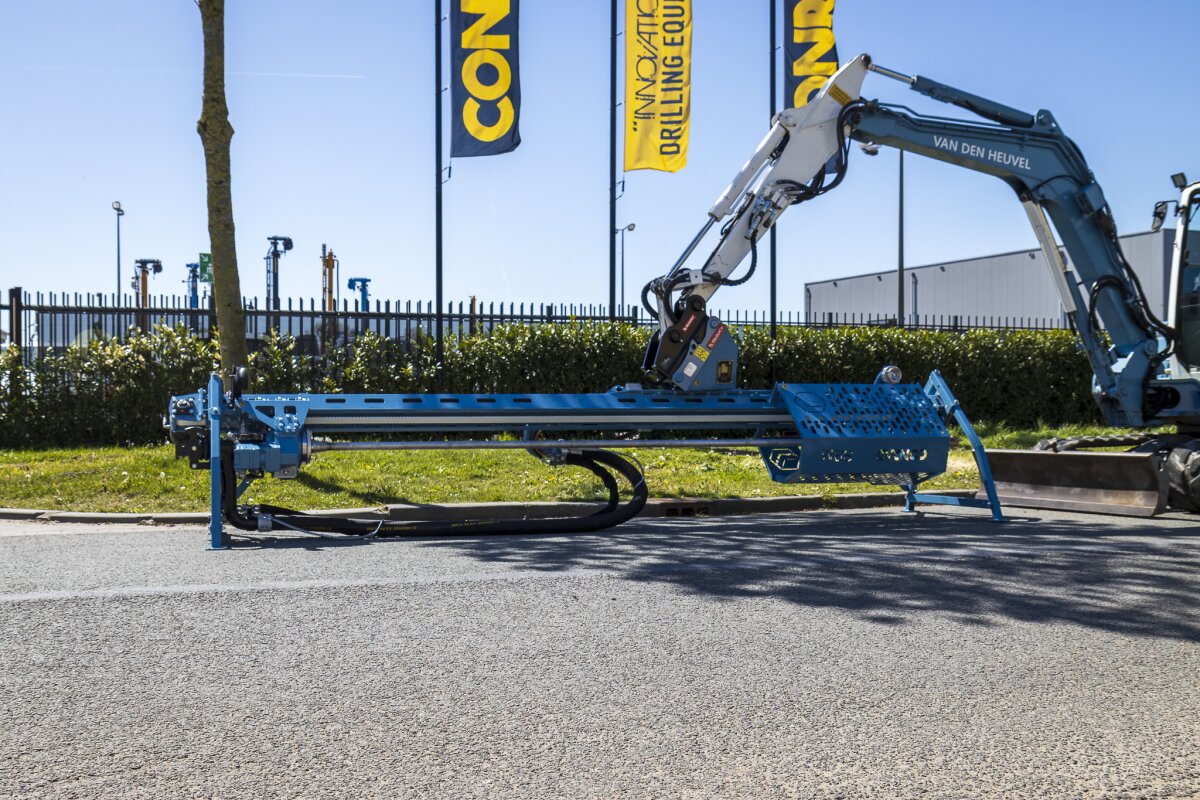

The SBM 4.0 is a jetting mast mounted on an excavator via the OilQuick quick-change system. This allows the mast to be attached and changed quickly and safely, without the need for manual hydraulic couplings. This makes it possible to efficiently combine drilling and excavation work on a single machine.
Technical specifications
- 4-metre stroke
- pull-up 800 DAN
- pull-down 600 DAN
- drilling torque 300 Nm at 60 rpm
- drill head bore 75 mm
- weight ±550 kg
