SBM 100 E-8
Like its smaller counterpart, the SBM 100 E-8 has been designed for the safe and efficient installation of drainage filters. Although this powerful rig cannot be transported on a trailer, it is, despite its size, highly manoeuvrable and easy to handle in confined spaces.
Overview
100% Electric
With its hydraulically driven rubber track undercarriage and 360° rotating upper structure, it offers a comfortable working experience in any location. The standard 180 kWh battery pack with integrated charger makes the SBM 100 E-8 completely emission-free and quiet in operation, without compromising on power or efficiency.
Operation convenience
This dewatering machine allows for drilling with larger diameters and working with auger bits. The combination of its lightweight design and the radio-controlled operating unit makes the job as easy as possible for any experienced driller. Two people are no longer needed for the job.
Furthermore, the SBM 100 E-8 can be fitted with its own pump and is suitable for drilling deep wells and geological surveys. This makes it a true all-round machine.
Specifications
| E-drive | Conrad E-drive |
|---|---|
| Power | 17 KW / 96 V |
| Battery pack | 60 KWH |
| E-charger | 96 V / 9 KWH |
| Slag Boormast | 8 meter |
| Pull-up | 2000 daN |
| Pull-down | 1000 daN |
| Thrupass drill head | 125 mm |
| Torque drill head | 0 - 400 DAN |
| Revolutions drill head | 60 RPM |
| Operating system | Conrad Remote |
| Weight | 12.000 kg |
| Ground pressure | 0,47kg / per cm2 |
| 3" Drill lance | 8 meter |
|---|---|
| Telescopic lance | COD 101.6/70 x 10,000 |
| Hydraulic catch clamp | Foldable |
| Modem | Remote Diagnostics |

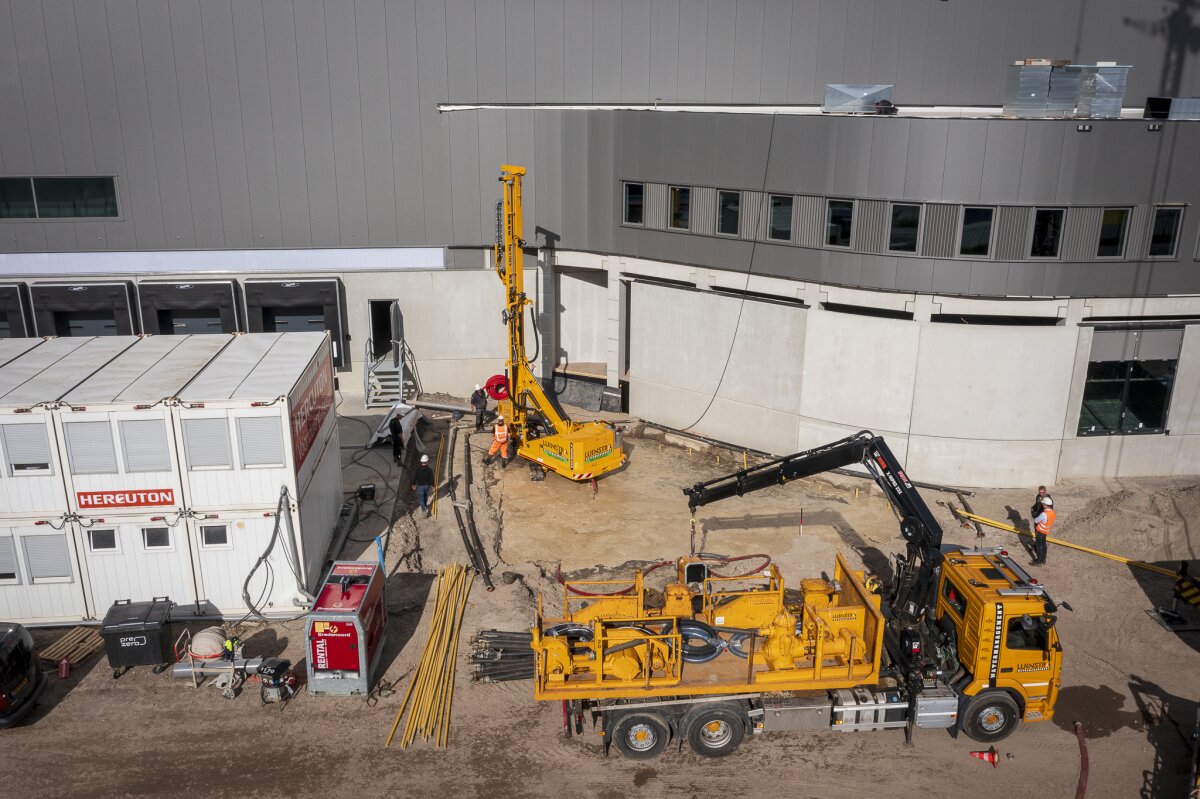

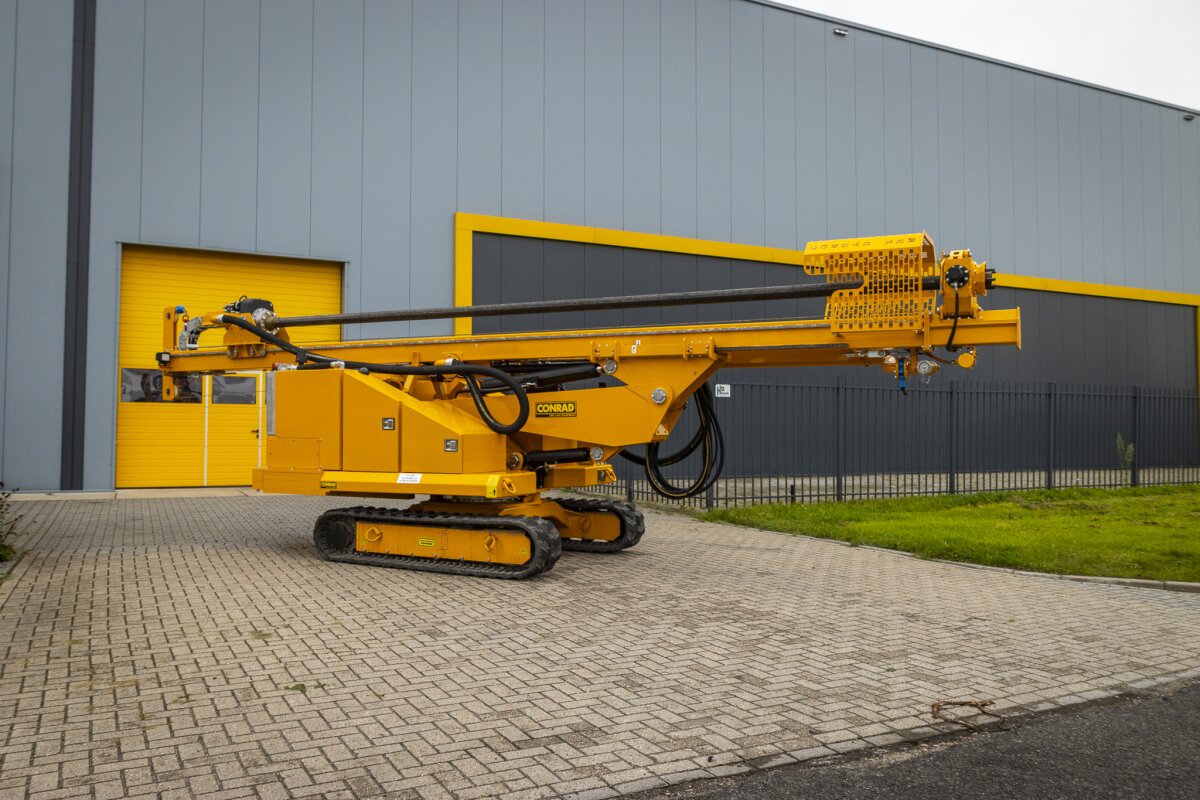

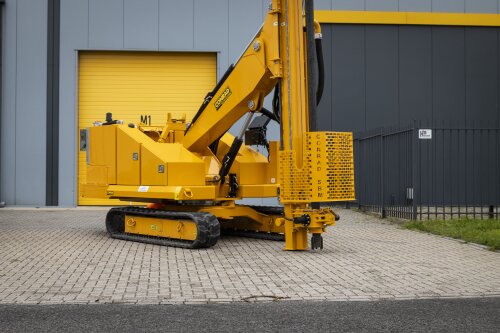

Photo archive
Want to know more?
Do you want to know more about the SBM 100 E-8 and its capabilities?
Ask your question using the contact form below.
