SBM 50 E-6

With the fully electric SBM 50 E-6, we have once again taken an important step toward the future. This dewatering drilling rig performs exceptionally well, particularly in areas and on sites where environmental requirements are becoming increasingly stringent.

Overview

We already knew that the SBM 50-6 is the smallest vertical drilling rig in Conrad's product range. This advanced and extremely handy drilling rig eliminates the need for a large jetting mast with trucks and flatbed trailers on smaller jobs and is also well equipped for larger jobs. Manual installation of dewatering filters is no longer necessary with this SBM. This compact machine on a crawler track literally takes the work off your hands.

And speaking of innovation, with the fully electric SBM 50 E-6, we have once again taken an important step into the future. This vertical drilling rig is particularly well suited to areas and sites where environmental requirements are becoming increasingly stringent.

Operation convenience

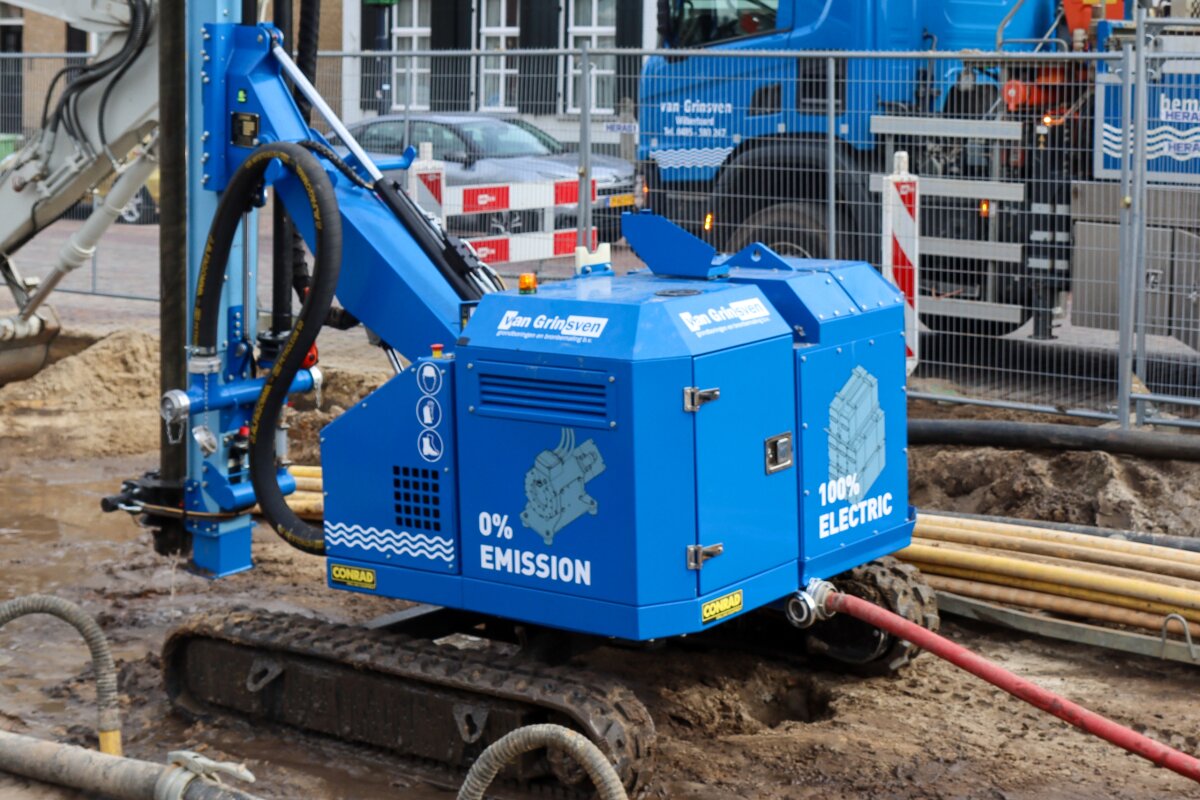

The smallest jetting machine in Conrad's range for dewatering is also available in an emission-free version: the SBM 50 E-6. These advanced jetting machines are specially equipped for installing dewatering filters in difficult terrain and tight spaces. The 360° rotatable undercarriage provides an extremely flexible solution.

With its fully radio-controlled operation and crawler tracks, the SBM 50 E-6 is a dream come true for every drilling operator. Quiet, clean, and powerful. And that doesn't just apply on site.

Specifications

Technical specifications
E-drive	Conrad E-drive
Power	17 KW / 96 V
Battery pack	60 KWH
E-charger	96 V / 9 KWH
Slag Boormast	6 meter
Pull-up	500 daN
Pull-down	250 daN
Thrupass drill head	75 mm
Torque drill head	150 daNm
Revolutions drill head	60 omw/min
Operating system	Conrad Remote
Weight	2.400 kg
Ground pressure	0,3kg / per cm2
