BOXER 150 B
The Boxer 150 B is a very compact, diesel-hydraulically driven well drilling machine with a very favorable price-quality ratio. With this Boxer you choose a powerful, compact and manoeuvrable machine. An ideal combination for smaller spaces and larger projects.
Overview
THE PERFECT MID-RANGE BOREHOLE DRILLING SOLUTION
The Boxer 150 B is an extremely compact diesel-hydraulic driven borehole drilling rig with an incredible price-quality ratio. Mounted on a tracked undercarriage, this modern compact and easy to control machine series is ideal for difficult terrain conditions. With radio control it also delivers amazingly easy manoeuvrability in situations where space is limited. Like the smaller borehole drilling machines such as the Boxer 60 B and Boxer 120 B, this machine is suitable for flush and suction drilling. Its versatility enables the Boxer 150 B to be used for both drilling monitoring wells and sprinkler wells.
The Boxer 150 B is a powerful, compact and manoeuvrable machine. An ideal combination for smaller spaces and larger projects. And with the drill pipe manipulator and Scanreco, you only need one drilling operator.
Operation convenience
The Scanreco operating system makes life easier for every drill operator. Operators can use the multi-functional controller for quick menu navigation on the eight-inch LCD monitor. The hi-res anti-reflection screen is always easy to read even when the sun’s shining and the sleek layout provides a clear overview and amazing functionality.
The most important Boxer 150 B features
- Compact and powerful borehole drilling rig
- Incredibly easy operation
- Proven reliability
- Solid and robust rig
- Mounted on a caterpillar chassis
In terms of engine power, there are two options: a Volvo diesel engine or electric version. In sheer power they’re true equals.
Volvo TAD580VE
This Conrad machine is powered by a powerful Volvo Penta series diesel engine, developed in accordance with the latest emission standards and equipped with SCR, DPF+DOC, the so-called uncooled EGR and outstanding passive exhaust regeneration. These uncomplicated and compact engines are built using Volvo Group technology. They deliver high torque even at low revs and their extended oil interval of 1,000 hours make them very easy to maintain. Volvo offers 24/7 service worldwide and a 5-year manufacturer's warranty.
Specifications
| Engine | Volvo Penta, TAD580, |
|---|---|
| Power | 105 kW at 2000 rpm |
| E-mission | Stage V |
| Stroke Drill mast | 4.5 meters |
| Pull-up force | 6,000 daN |
| Pull-down force | 3,000 daN |
| Drill head passage | 75 / 100 / 125 mm |
| Drill head torque | 300 / 600 daNm |
| Drill head speed | 10 - 120 rpm |
| Control system | Parker I-QAN CANbus system |
| Drill pipe manipulator | Radiographic |
| Drill pipe storage system | Storage 18 x 3 meters |
| Winch | 1,450 daN 60 meters |
| Suction pump | 160 m3 / 8.8 meters w.k. |
| Control | Radiographic |
| Weight | 7,700 kg |
| Bottom pressure | 0.48kg / per cm2 |
| Diesel tank capacity | 130 Liter |
| AD-Blue tank capacity | 25 Liter |
| Rotatable undercarriage | Rotate 360 degrees |
|---|---|
| Central grease lubrication | SKF |
| Masttranslation | 0.4 meter stroke |
| Modem | Remote Diagnosis |
| Automatic manipulator | Semi-automatic |
| Flowcontrol | Automatic pump control |
| Electric | |
| Truck |

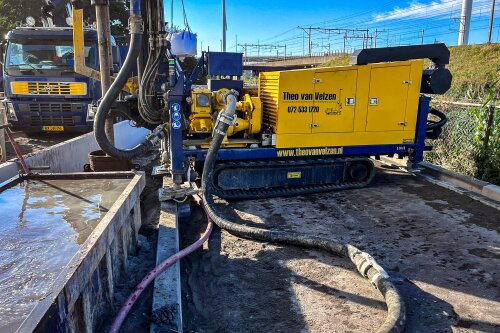

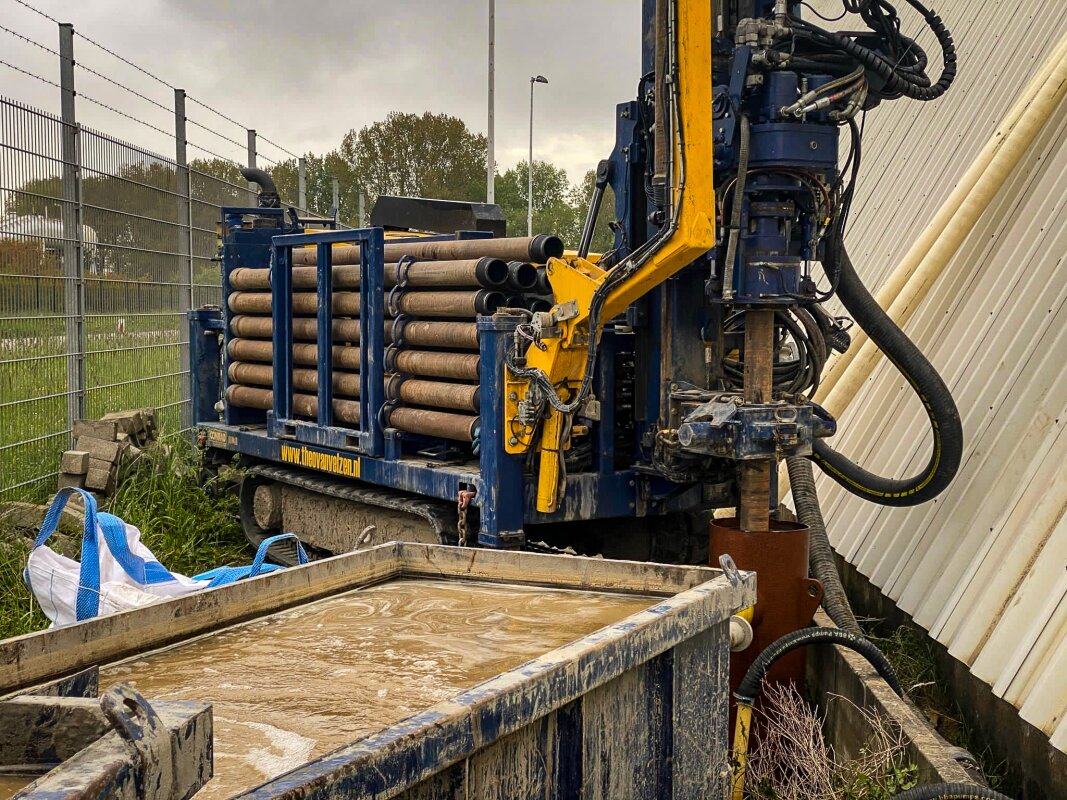

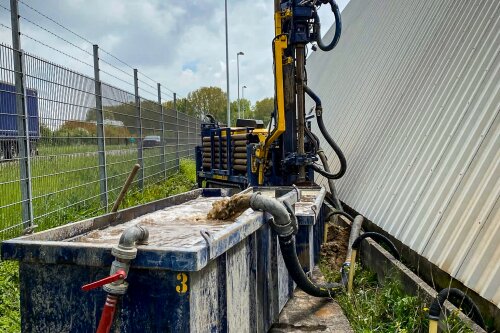

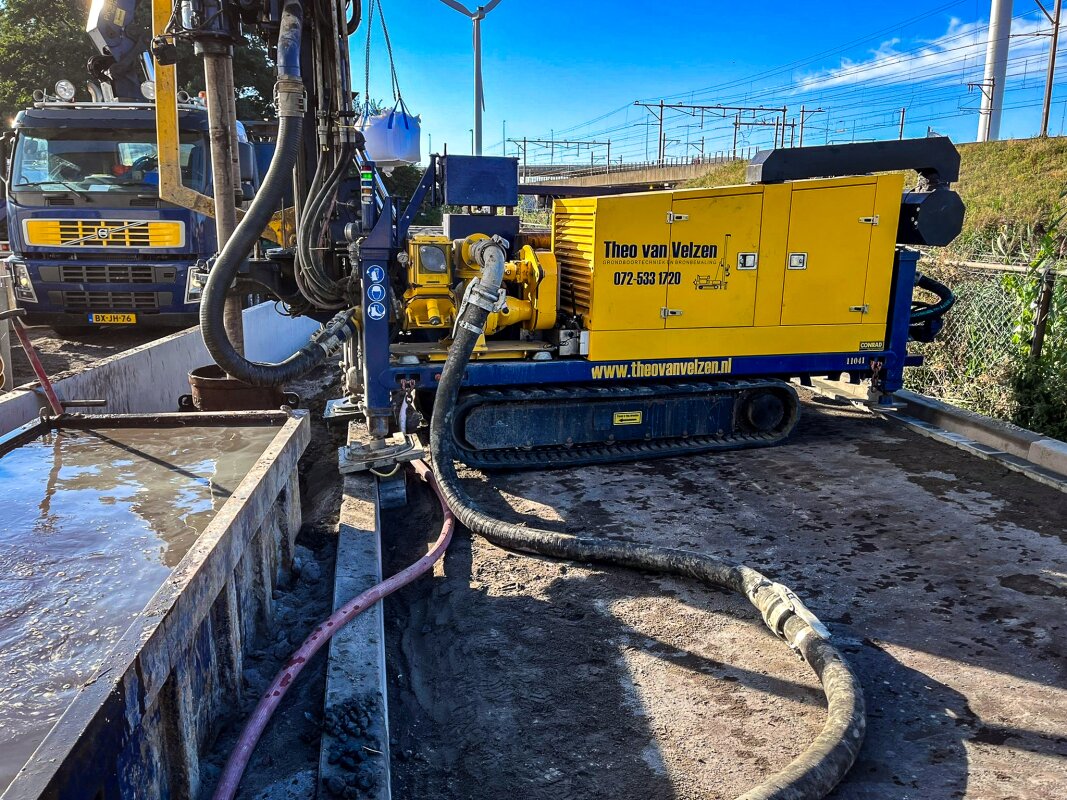

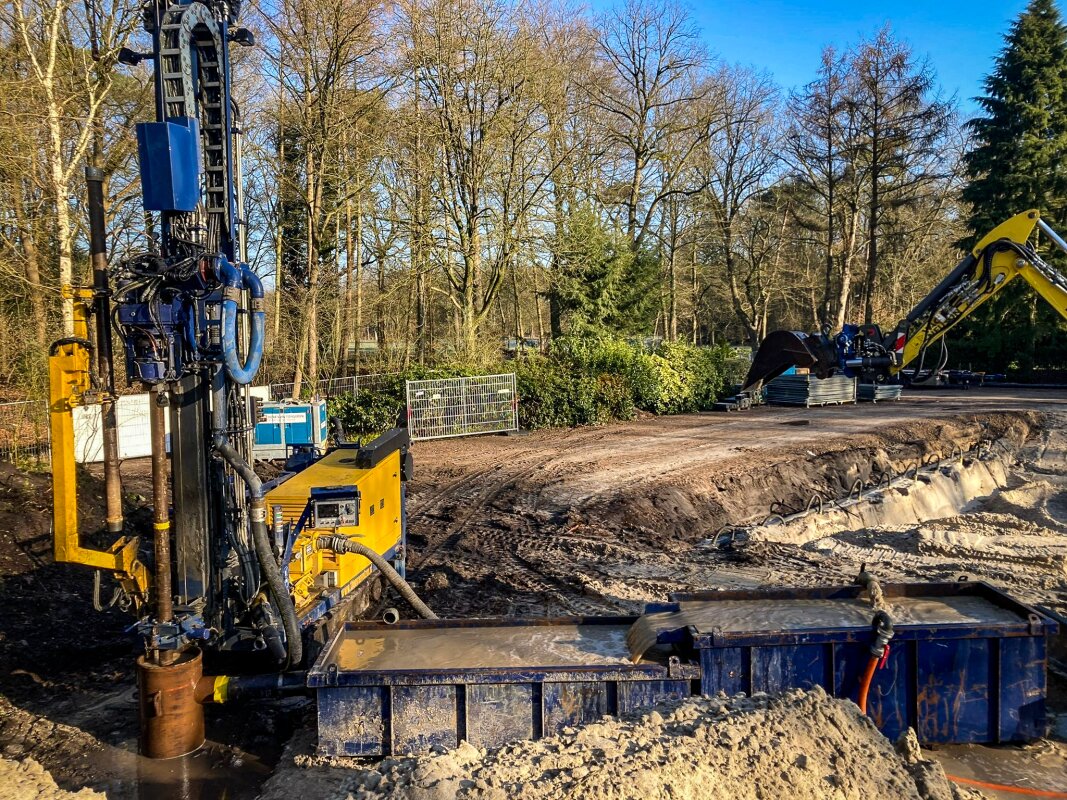

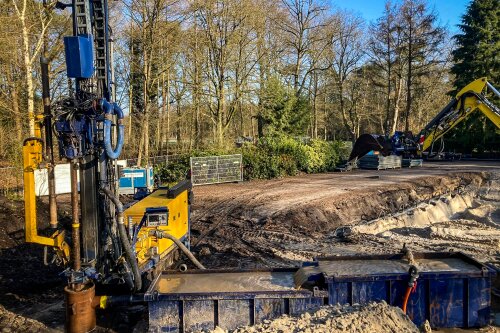

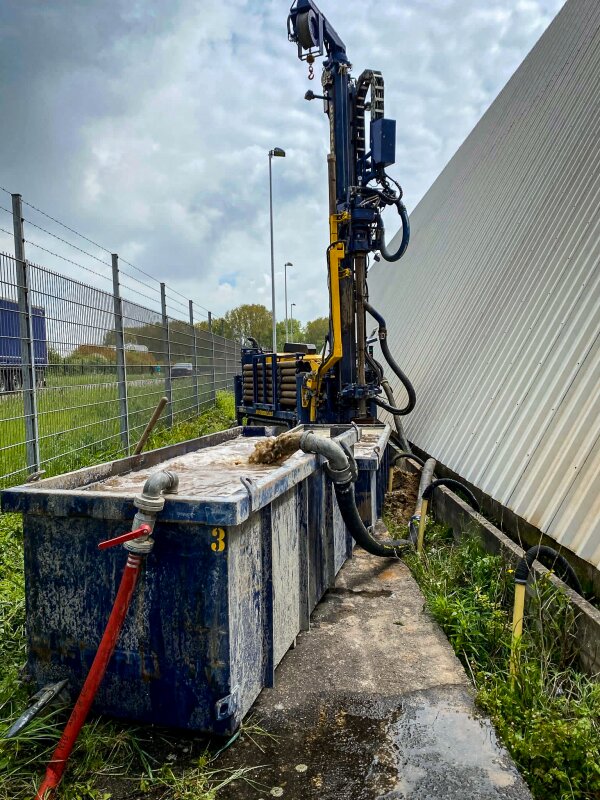

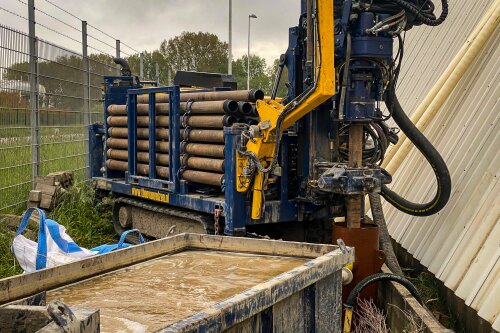

Photo archive
