COMAX 1000 B

The Comax 1000 B from Conrad is the ultimate powerhouse from Conrad. With its pull-up range of approximately 35 to 60 tons, it is simply the strongest. This installation from Conrad's product range is there when it really counts. With this installation, fully customer-specific equipment is possible in terms of options and accessories.

COMAX 1000 B - WELL DRILLING

Overview

THE ULTIMATE IN BOREHOLE DRILLING

The Comax 1000 B is Conrad’s ultimate powerhouse. With its pull-up range of approximately 35 to 60 tonnes, it is simply the strongest ever. This rig from Conrad’s product range is there for you when it really counts. Although compared with other rigs, the Comax 1000 is certainly not sophisticated, it can easily compete in terms of innovation and ease of operation.

The Conrad Comax 1000 is often at the same location for weeks at a time and is used to drill to depths of some 800 metres. And yet, even with the Comax 1000, all drilling methods can be radio controlled. We make no compromises on this. We also demand the best from the largest machines when it comes to ease of use for drill operators. We have translated the experiences, even with the more common models in our range, to all types of installations. This makes the Comax 1000 B a rare affordable machine in the top drilling machine segment.

COMAX 1000 specifications

  • Most powerful borehole drilling machine in Conrad’s product line
  • Fully customisable equipment in terms of options and accessories
  • Complete drill pipe manipulation system
  • Automatic control to minimise manual driving and optimise ease of operation.
  • Radio remote control to operate all important drilling functions and drilling rig setup, optimising safety and ease of operation.
  • Suitable for both 4, 5 as well as 6-metre-long drill pipes
  • Mounted on caterpillar or truck chassis
  • An impressive engine power of up to 315 kW that significantly increases productivity.
COMAX 1000 B - WELL DRILLING

Operation convenience

Operators can use the multi-functional controller for quick menu navigation on the eight-inch LCD monitor. The hi-res anti-reflection screen is always easy to read even when it’s really sunny and the updated layout provides a clear overview and amazing functionality.

Volvo TAD1180-1183VE

This Conrad machine is powered by a powerful Volvo Penta series diesel engine, developed in accordance with the latest emission standards and equipped with SCR, DPF+DOC, the so-called uncooled EGR and outstanding passive exhaust regeneration. These uncomplicated and compact engines are built using Volvo Group technology. They deliver high torque even at low revs and their extended oil interval of 1,000 hours make them very easy to maintain. Volvo offers 24/7 service worldwide and a 5-year manufacturer's warranty.

Specifications

Technical specifications
Motor Volvo Penta, TAD1183,
Vermogen 315 kW bij 1900 rpm
E-missie Stage V
Slag Boormast 7,4 meter
Pull-up kracht 35.000 daN
Pull-down kracht 17.500 daN
Doorlaat boorkop 125 / 150 mm
Koppel boorkop 600 - 1.900 daNm
Toerental boorkop 10 - 100 omw/min
Breekmechanisme 5.000 daNm
Besturingssyteem Parker I-QAN CANbus systeem
Boorbuismanipulator Radiografisch
Diameter boorbuis 150 mm
Boorbuis opslagsysteem Opslag 24 x 5 meter
Lier 4.000 daN 60 meter
Zuigpomp 280 m3 / 9 meter w.k.
Compressor 11 m3/min bij 15 bar
Bediening Radiografisch
Gewicht 25,000 kg
Bodemdruk 0,3kg / per cm2
Inhoud dieseltank ?
Inhoud AD-Blue tank ?
Options
Draaikrans 360 graden roteren
Centrale vetsmering SKF
Masttranslatie 1 meter slag
Modem Diagnose op afstand
Automatische manipulator Halfautomaat
Flowcontrol Automatische pompregeling
Lengte boorbuizen 6 meter uitvoering
Elektrisch
Truck

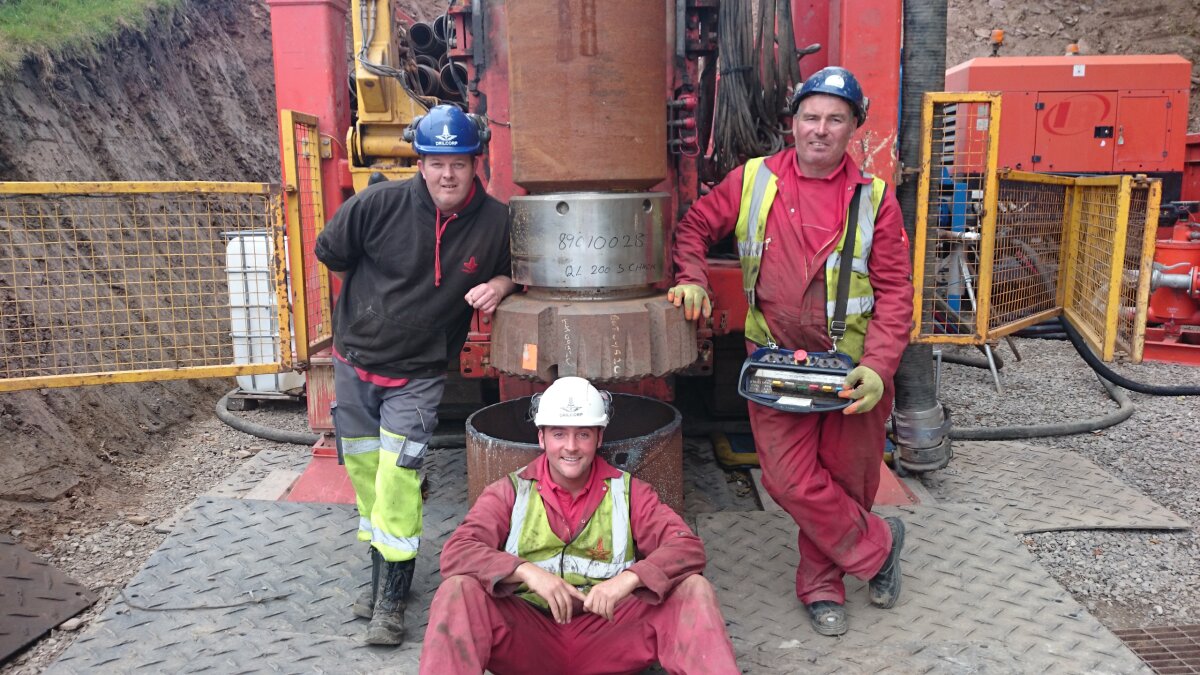

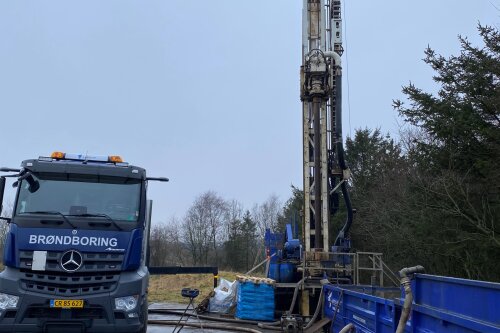

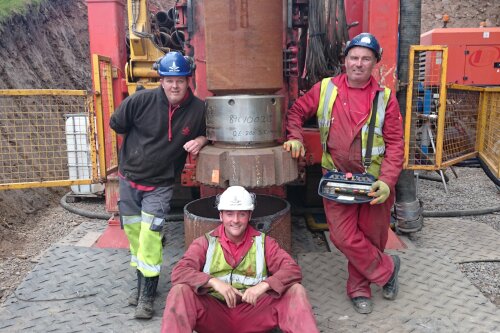

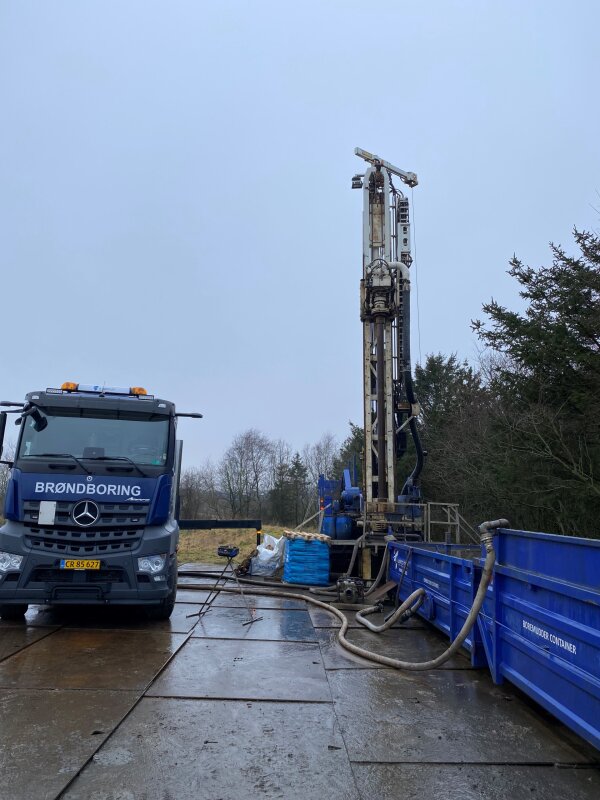

Photo archive
