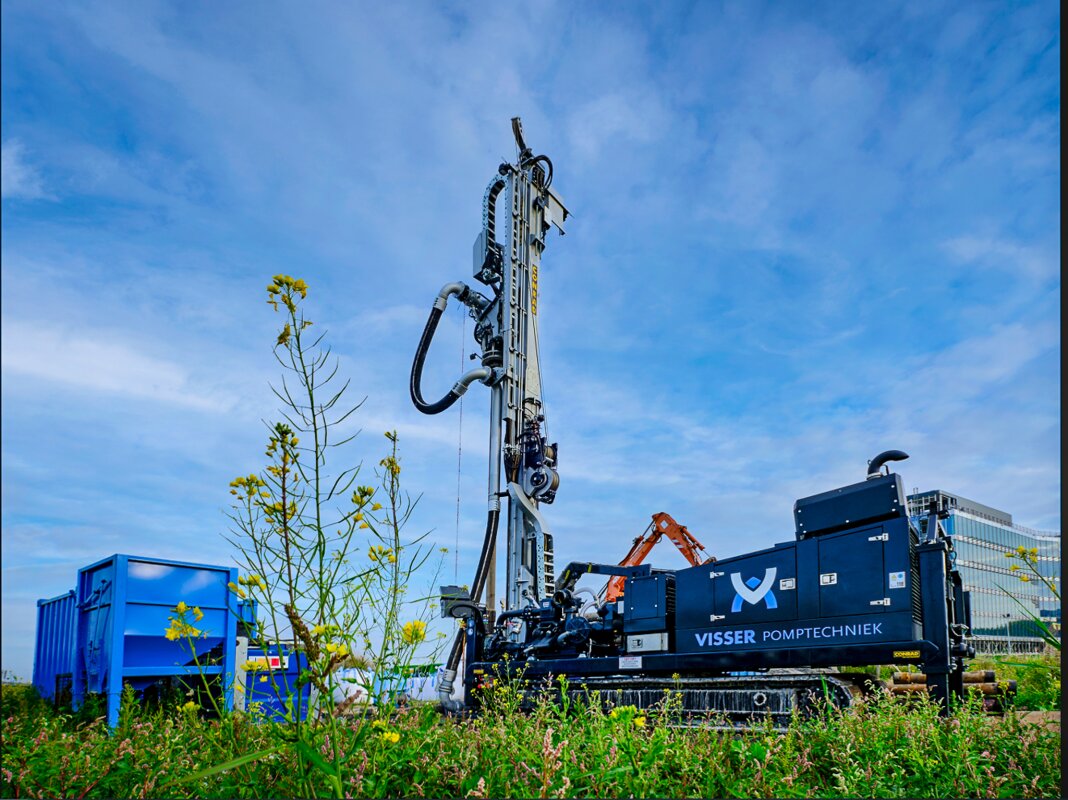

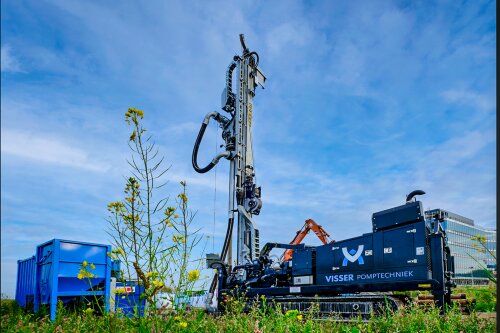

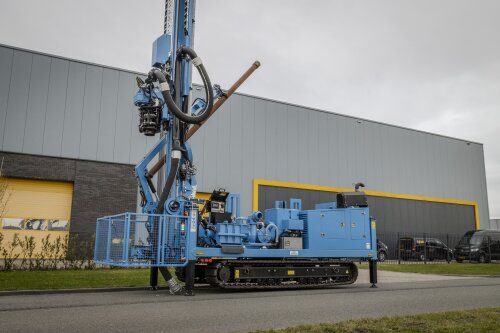

COMBI 300 B
The Combi 300 B is pre-eminently a machine for challenging ATES projects in geothermal energy and water extraction processes. With a reach of more than 250 meters for suction airlift drilling and its enormous power, this Conrad Combi 300 has proven to be a very reliable installation.
Overview
UNIQUE COMBINATION OF FACTORS
The Combi 300 B offers outstanding performance in challenging CHP projects in geothermal energy and water extraction processes. With a reach of over 250 metres deep for suction and airlift drilling and incredible power, this Conrad Combi 300 has proven to be the ultimate reliable machine. It is an outstanding performer in flush and suction drilling and suction drilling with airlift and offers so many pump assembly, compressor, accessory and even rotary table options.
Compared with the Boxer 200 B, you also really notice that extra power, both in the hydraulic systems as well as in the pumps and diesel engine. It makes the Combi 300 B unbelievably effective. Despite the dimensions, this machine is also delivered with a rotating frame, manipulator and remote control, and the entire drilling process can be controlled by one drilling operator. Of course, operator comfort is then an extremely high priority. And that is outstanding with this powerful machine.
Compared with the Boxer 200, you really notice that extra power, both in the hydraulic systems as well as in the pumps and diesel engine. It makes the Combi 300 B deliver remarkable performance on CHP projects but you can certainly also use it for smaller projects such as closed-loop geothermal projects.
Operation convenience
Despite the dimensions, this machine is also delivered with a rotating frame, manipulator and remote control, and the entire drilling process can be controlled by one drilling operator.
Combi 300 B specifications
- Suitable for both 4-meter and 5-metre-long drill pipes
- Optional diesel engine up to 250 kW
- Pulling power of 15 tonnes
- Mounted on caterpillar or truck chassis
In terms of engine power, there are two options: a Volvo diesel engine or electric version. In sheer power they’re true equals.
Volvo TAD583VE
This Conrad machine is powered by a powerful Volvo Penta series diesel engine, developed in accordance with the latest emission standards and equipped with SCR, DPF+DOC, the so-called uncooled EGR and outstanding passive exhaust regeneration. These uncomplicated and compact engines are built using Volvo Group technology. They deliver high torque even at low revs and their extended oil interval of 1,000 hours make them very easy to maintain. Volvo offers 24/7 service worldwide and a 5-year manufacturer's warranty.
Specifications
| Engine | Volvo Penta, TAD583, |
|---|---|
| Power | 175 kW at 1800 rpm |
| E-mission | Stage V |
| Stroke Drill mast | 5.8 meters |
| Pull-up force | 15,000 daN |
| Pull-down force | 7,500 daN |
| Drill head passage | 75 / 100 / 125 / 150 mm |
| Drill head torque | 300 - 1,900 daNm |
| Drill head speed | 10 - 100 rpm |
| Control system | Parker I-QAN CANbus system |
| Drill pipe manipulator | Radiographic |
| Drill pipe storage system | Storage 21 x 4 meters |
| Winch | 3,000 daN 60 meters |
| Suction pump | 280 m3 / 9 meters w.k. |
| Compressor | 6 m3/min at 12 bar |
| Control | Radiographic |
| Weight | 16,000 kg |
| Bottom pressure | 0.3kg / per cm2 |
| Diesel tank capacity | ? |
| AD-Blue tank capacity | ? |
| Turntable | rotate 360 degrees |
|---|---|
| Central grease lubrication | SKF |
| Masttranslation | 0.8 meter stroke |
| Modem | Remote diagnostics |
| Automatic manipulator | Semi-automatic |
| Flowcontrol | Automatic pump control |
| Drill pipe length | 5 meter version |
| Electric | |
| Truck |

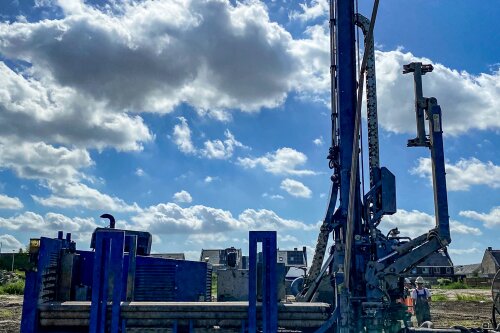

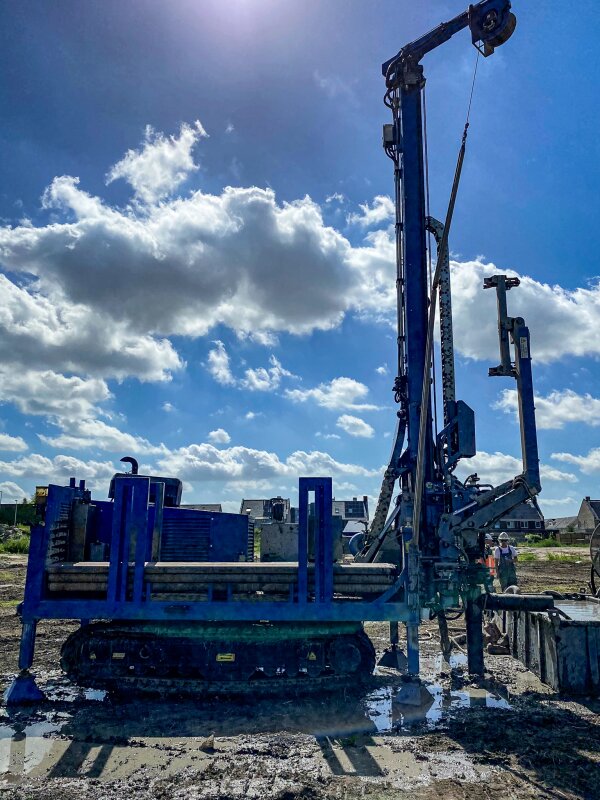

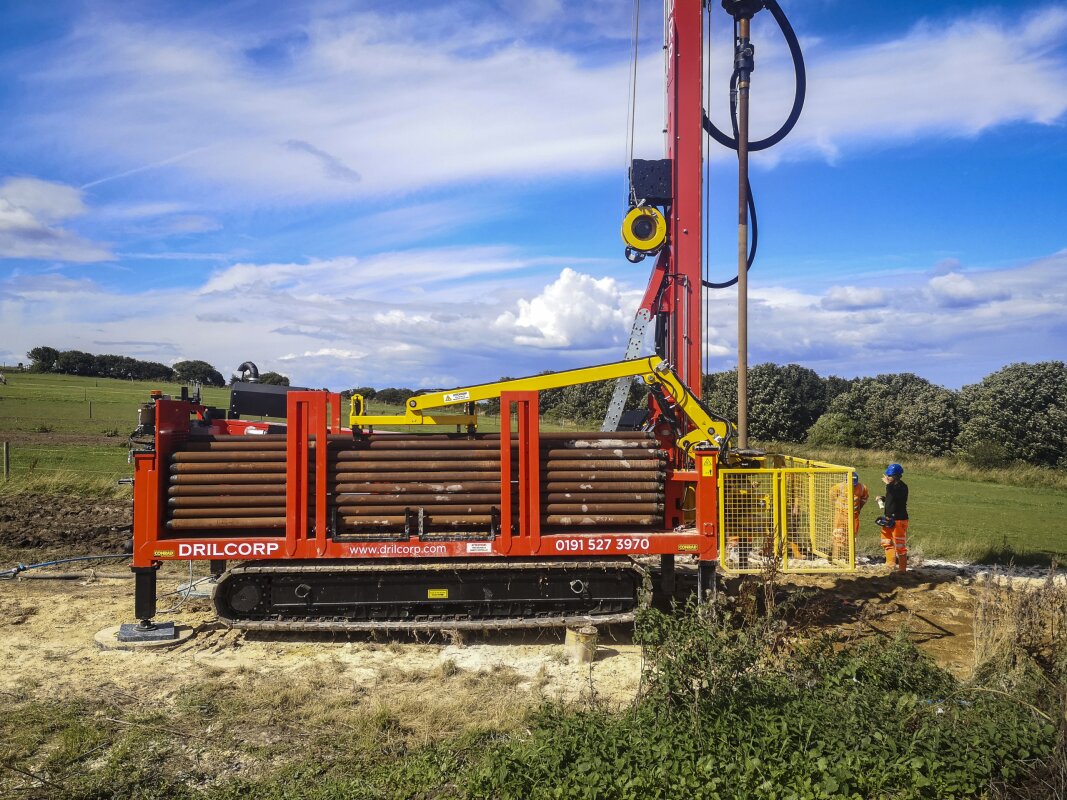

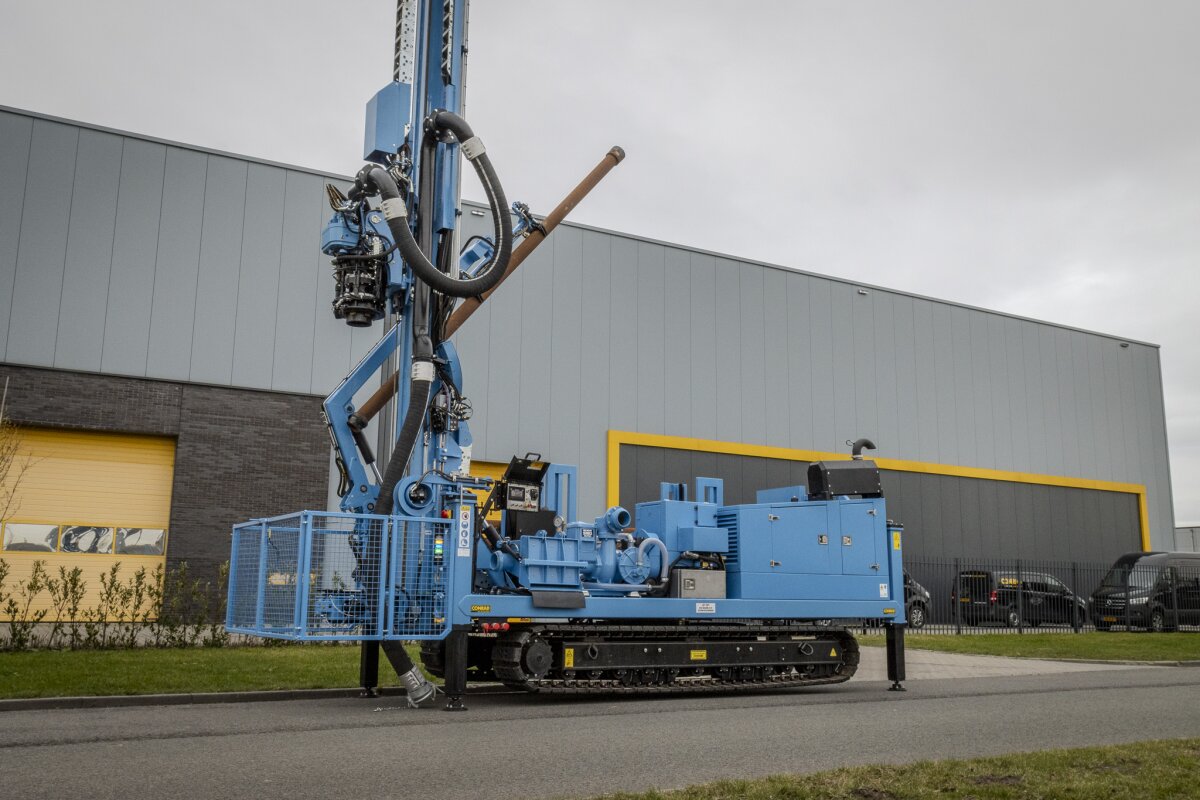

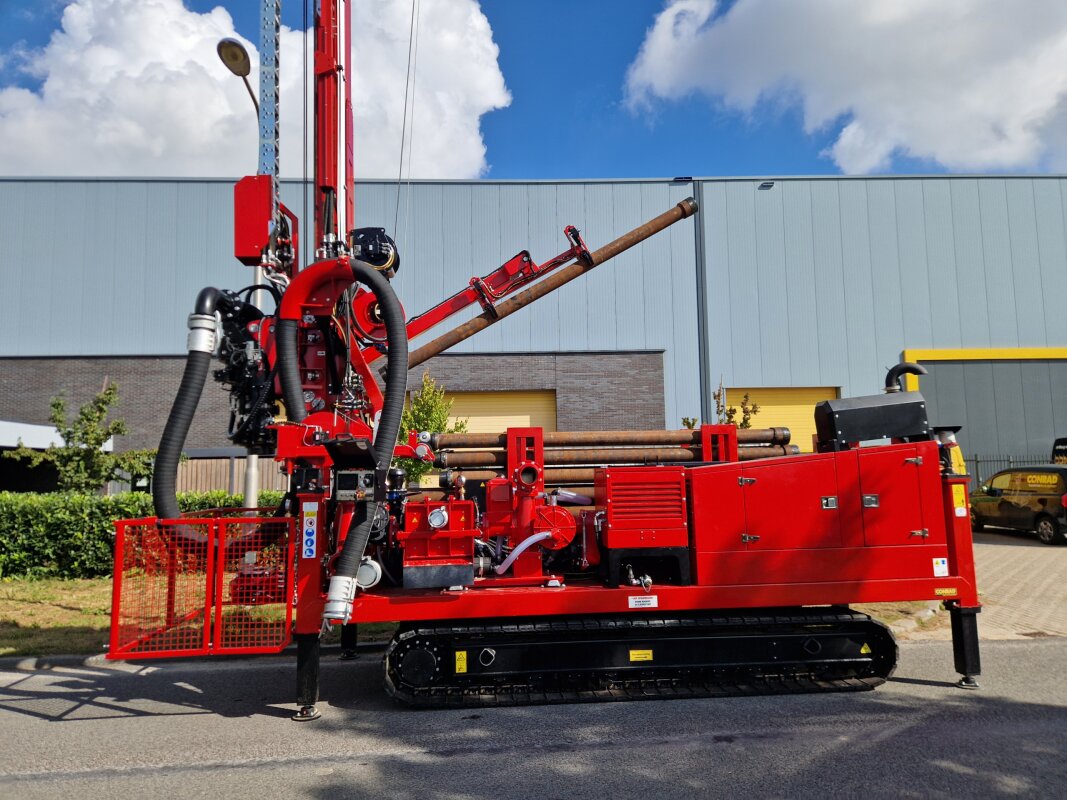

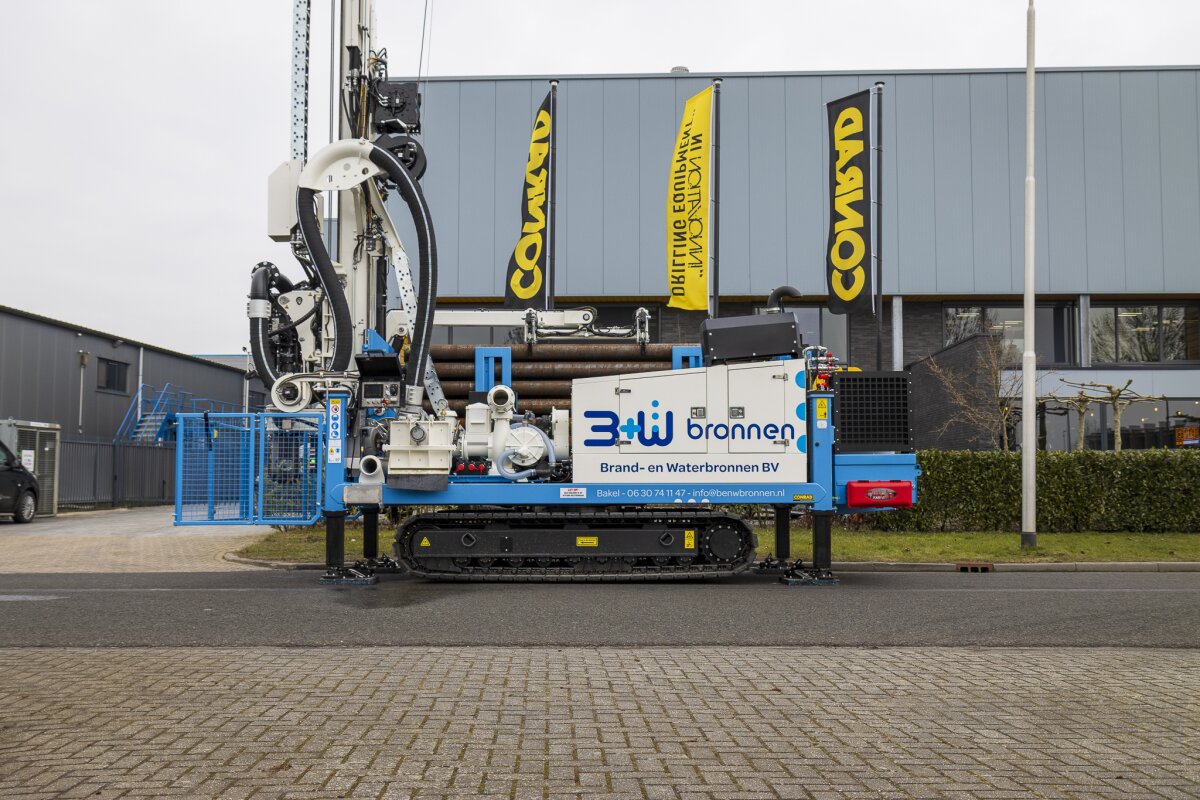

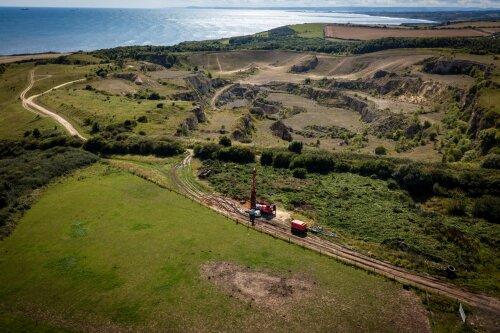

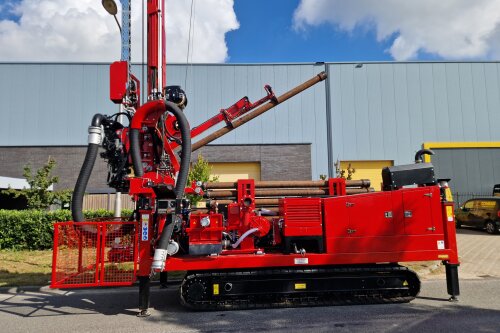

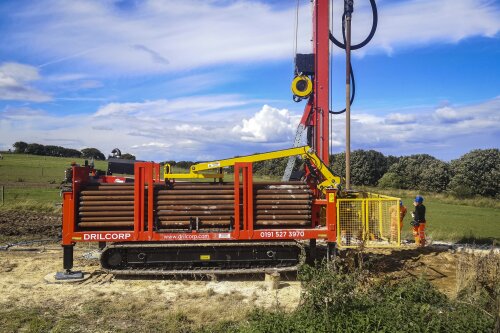

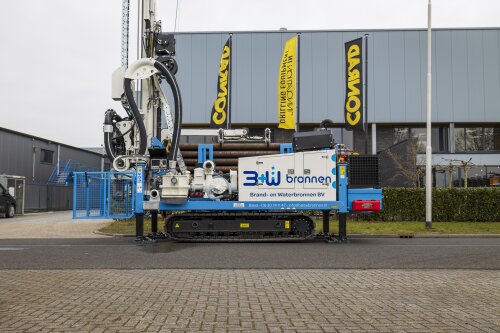

Photo archive
