Double innovation at Van Grinsven

Van Grinsven dares to innovate. Following the first electric SBM 50 E-6, the first Boxer 200 DA with double drill head is now available. The company is active in dewatering, horizontal drainage, deep well dewatering, and the drilling of open and closed geothermal energy systems, fire wells, and irrigation wells.

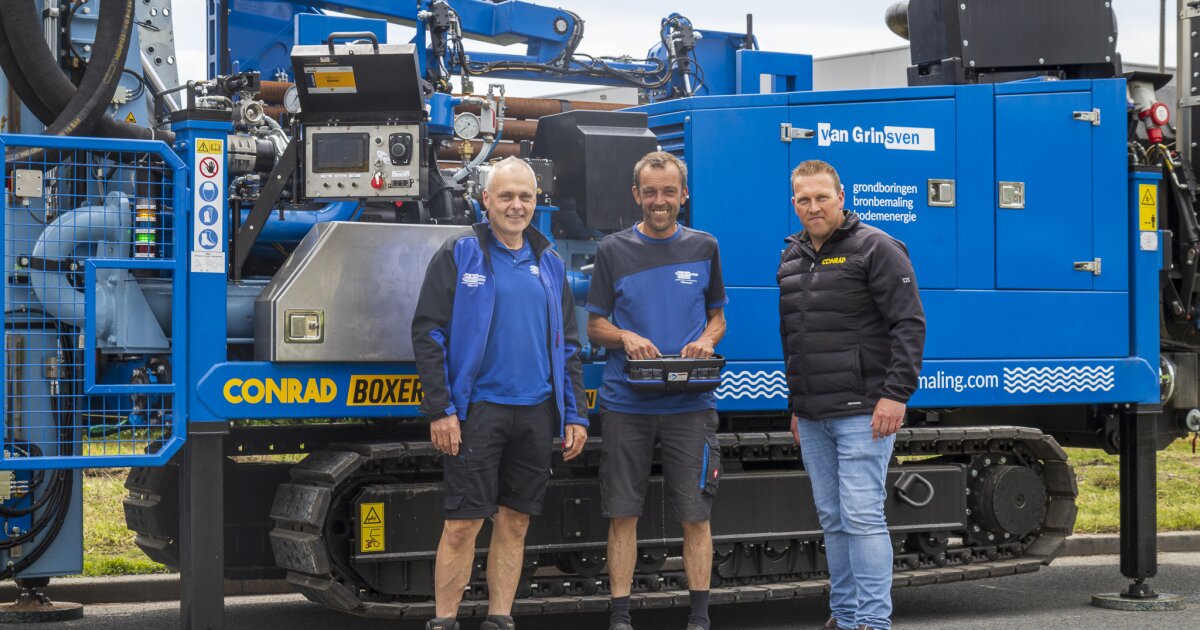

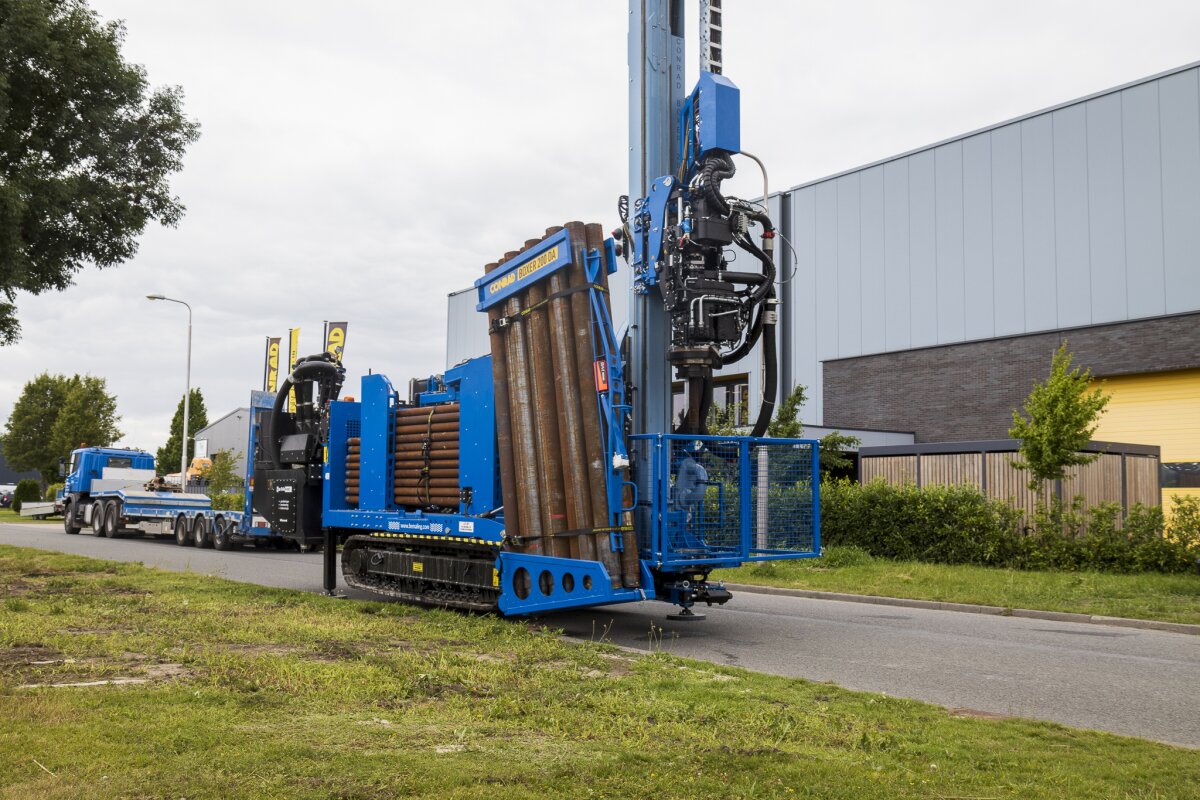

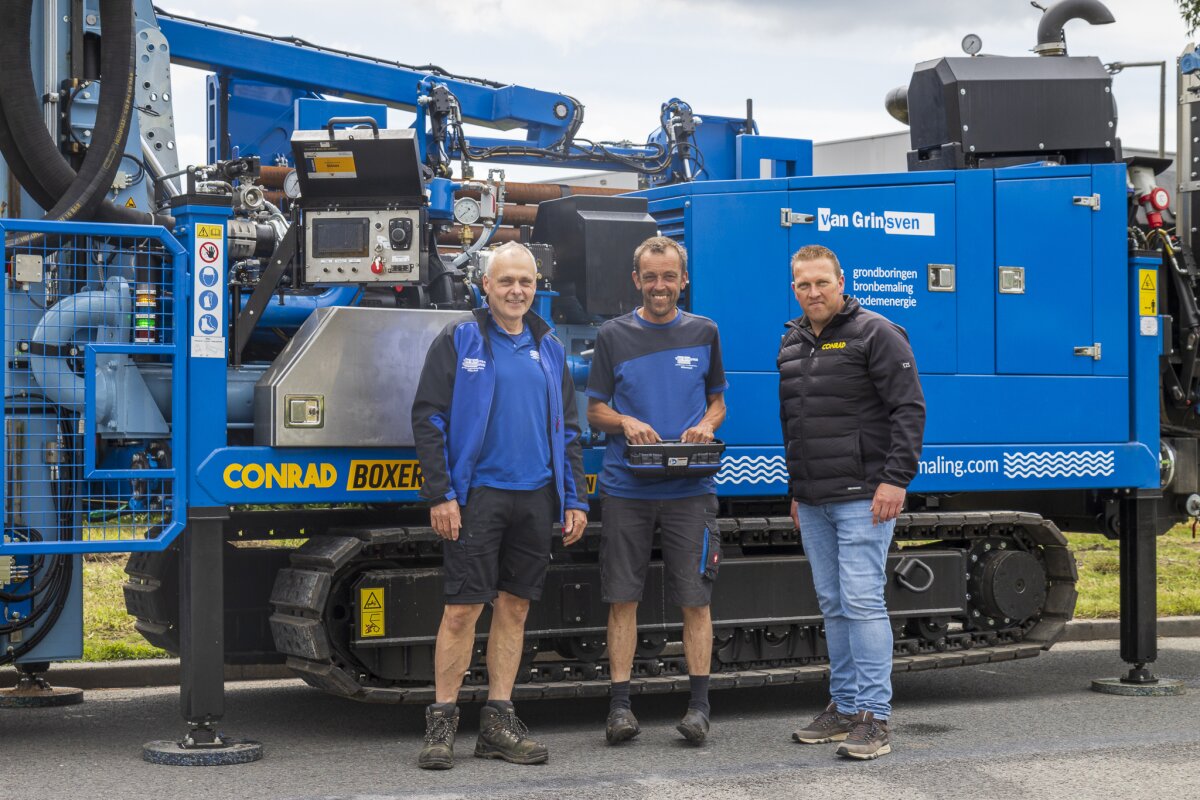

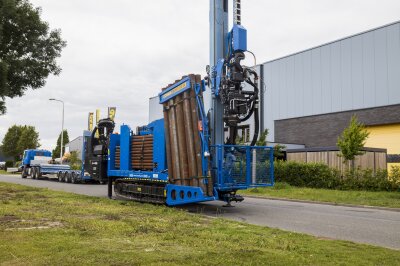

Boxer 200 DA is a lightweight machine with a double drill head for hard soil layers

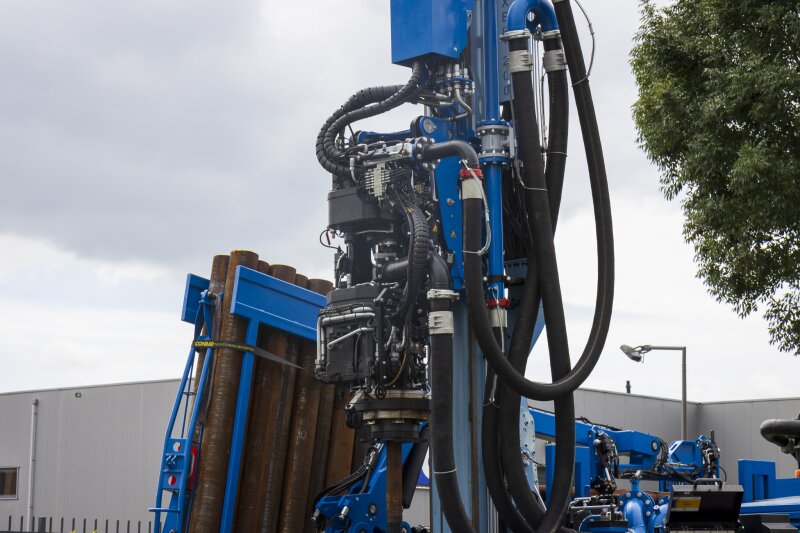

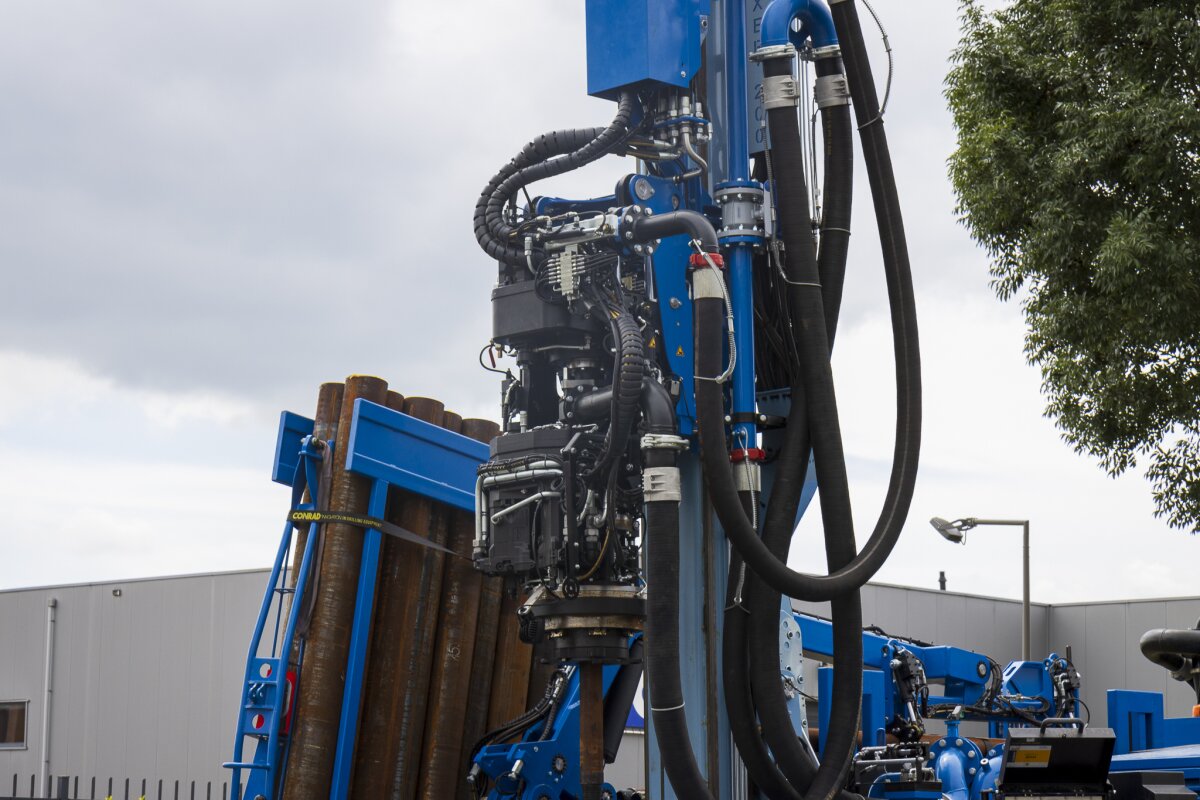

Where the Combi 300 DA focuses on the heavier segment, the Boxer 200 DA brings the same double drilling technology to a lighter version. This machine places casing and drill pipes simultaneously, without wasting time changing tools. Ideal for projects where casing is a requirement.

The Boxer 200 DA delivers 8,000 daN pull up and 4,000 daN pull down. It weighs 15,000 kg (excluding drill pipes). The machine has space for 200 meters of drill pipes and 54 meters of casing pipes. The CCR 1000 desanding unit is mounted at the rear, which automatically filters sand, clay, and gravel from the drilling fluid. This keeps the water usable and the drilling process clean.

Want to know more about the Boxer 200 DA Double Drill Head?

Read more or contact sales: sales@conrad-stanen.com
